Visibility on a new level in 3 x 360°. Simply Connected.

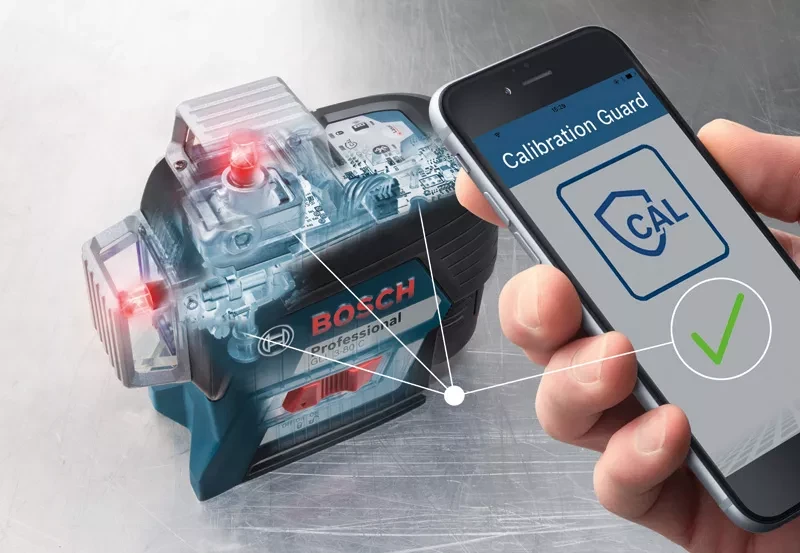

• Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
• High visual clarity is provided by high-powered diodes

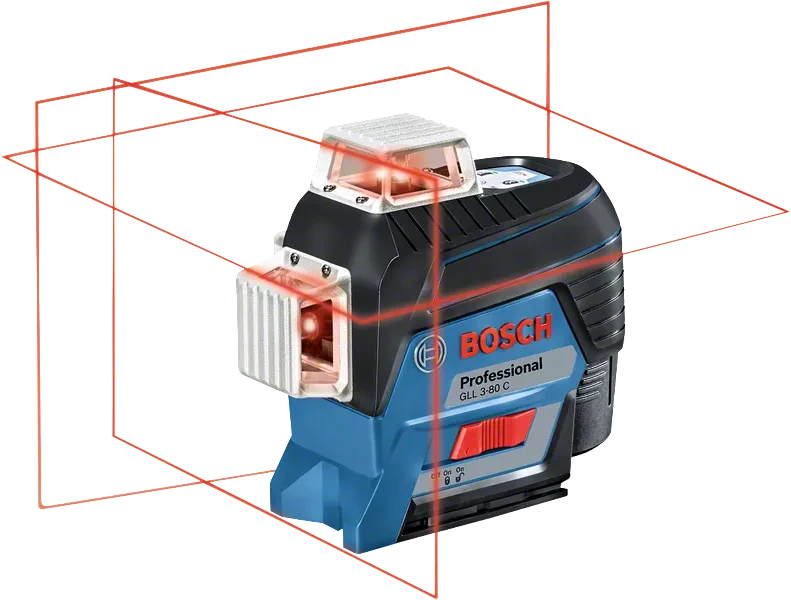

• 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work



  Technical data

  Additional data

  Tripod thread

  1/4", 5/8"

  Battery voltage

  12.0 V

  Laser diode

  Line: 630 - 650 nm, < 10mW

  Operating temperature

  -10 – 40 °C

  Storage temperature

  -20 – 70 °C

  Laser class

  2

  Working range

  up to 30 m

  Working range with receiver

  up to 120 m

  Accuracy

  ± 0.2 mm/mᵃ/**

  Self-levelling range

  ± 4°

  Levelling time

  4 s

  Dust and splash protection

  IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)

  Power supply

  12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)

  Operating time (max.)

  8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode

  Weight, approx.

  0.9 kg

  Colour of laser line

  red

  Projection

  3 x 360° line

  Compatible laser receivers

  LR 6 + 7

  Working range, value

  30 m

  Working range with receiver, value

  120 m
