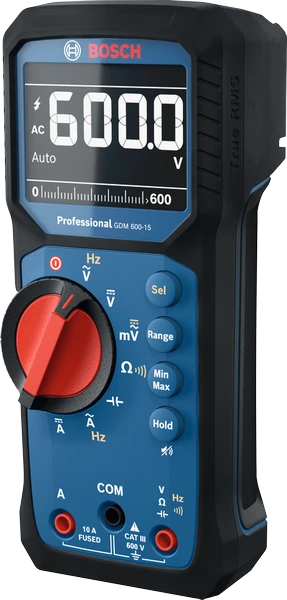

Digital multimeter

Order number 0.601.077.300

• Handles tough jobsites with an IP65 rating for durability and impact resistance
• Versatile measurements: frequency, continuity, resistance, and capacitance with Min/Max/Average recording

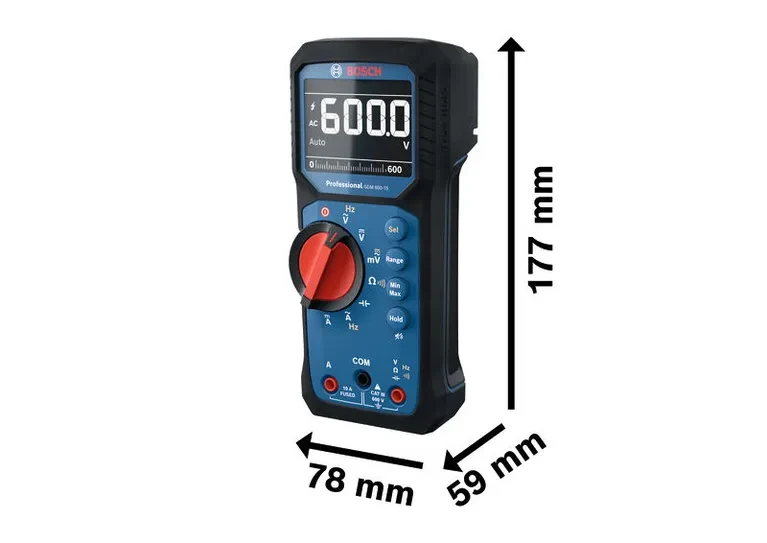

• Compact design for one-handed use, plus a kickstand and magnetic hanging solution for hands-free operation



  Technical data

  Additional data

  AC voltage measuring range max

  600 V

  AC resolution

  0.1 mV

  AC accuracy

  ± 1.0 % + 3

  AC current

  10 A

  AC current resolution

  0.001 A

  AC current accuracy

  ± 1.5% + 3

  DC voltage

  600 V

  DC voltage resolution

  0.1 mV

  DC voltage acccuracy

  ± 0.5 % + 2

  DC current

  10 A

  DC current resolution

  0.001 A

  DC current accuracy

  ± 1.0 % + 3

  Resistance measuring range max

  40 MΩ

  Resistance resolution

  0.01 MOhm

  Resistance accuracy

  ± 2.0 % + 5

  Capacitance measuring range max

  1000 µF

  Capacitance accuracy

  ± 1.9 % + 2

  Continuity

  yes

  Continuity resolution

  0.1 Ohm

  Continuity accuracy

  ± 1.0 % + 5

  Frequency ACA min

  600

  Frequency ACA max

  10

  Frequency resolution

  0.01 Hz

  Frequency accuracy

  ± 0.1 % + 2

  IP-Protection

  IP65

  True RMS

  yes

  Safety class

  CAT III 600 V

  Display type

  LCD Inverted

  Acoustic feedback

  yes

  Cable Break Detection

  no

  Measuring range for frequency

  50 kHz ACV / 2 kHz ACA



  PRO GDM 600-15: Further information

  Product Highlights

  The GDM 600-15 Professional is designed to enhance your efficiency with precise True RMS measurements. Its large inverted LCD display ensures clear readings across various applications. This versatile tool measures frequency, continuity, resistance, and capacitance, and also records signal fluctuations with Min/Max/Average measurements. Built to withstand tough jobsites, it has an IP65 rating for enhanced durability and protection against falls from up to 2m. And with a comfortable grip that helps reduce fatigue, you can rely on the GDM 600-15 Professional for the performance you need - even in the most demanding conditions.

  Equipment & Application

  Ideal for electricians, HVAC technicians, facility managers and electronics technicians, the GDM 600-15 Professional is your go-to for electrical installations, maintenance and repairs. It measures voltage, current and resistance in diverse electrical systems to ensure proper function and find faults. The compact design allows for easy one-handed operation, while a built-in kickstand and a separate magnetic hanging solution offer hands-free convenience.

  Additional Information

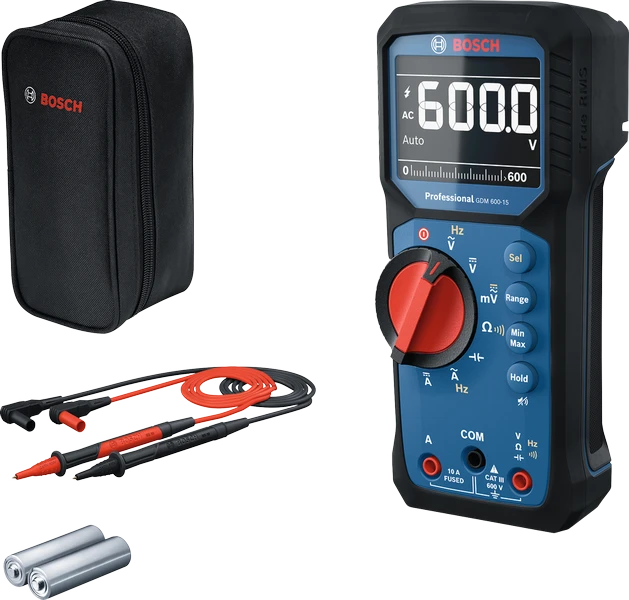

  Compatible with the Li-ion battery pack, the GDM 600-15 Professional offers long-lasting power. It is tested for safety with a measuring circuit category of CAT III 600V, and also includes high-quality measuring strips made of flexible, durable silicone to ensure reliability. Compact and efficient, this multimeter is built to support you in all your electrical tasks.
